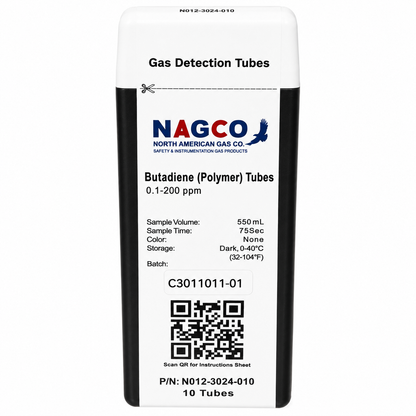

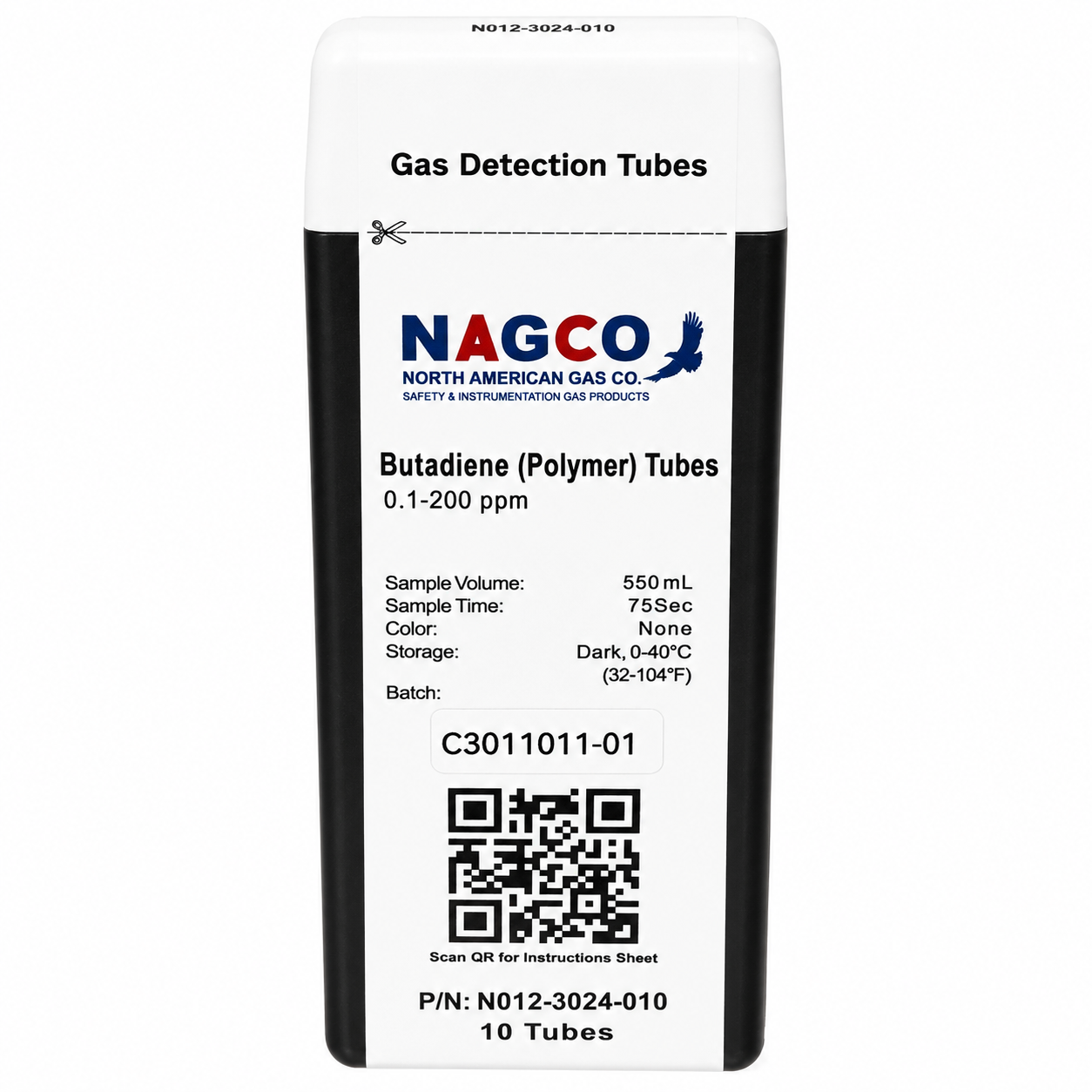

[NEW] Butadiene (C₄H₆) Polymer Detector Tube | Range: 0.1–200 ppmv | N012-3024-010

Designed for the measurement of Butadiene concentrations using a 9.8 eV standard lamp.

• Compound: Butadiene (C₄H₆)
• Typical Range: 0.1–200 ppmv
• Standard Lamp: 9.8 eV
• Sample Time: 75 seconds
• Sample Volume: 550 mL
• Total VOC Capacity: 150 ppmv
• Temperature Range: 5–40°C (41–104°F)
• Humidity Range: 0–95% RH
• Color Change: None

Storage: Unopened tubes can be stored for up to 2 years in darkness at 0–40°C (32–104°F). Opened tubes may be stored for up to 8 hours in clean air without significant loss of capacity.

Calibration: Calibration should be performed at the same temperature as the measurement. When calibrated from a dry gas cylinder, multiply the reading by the appropriate correction factor to obtain the true value.

Caution: Dispose of spent or expired tubes according to local regulations. Used tubes may contain toxic chemicals absorbed from the test environment. Unused tubes contain no hazardous or leachable materials.
